WEAR RESISTANCE ENGINEERING / D-PLATE
That wear,
will you wait until
the next shutdown?
For equipment you keep replacing because of wear, there is another option: the complex carbide overlay plate D-Plate. From material selection to fabricated shape, we tailor the solution to your real operating conditions.
- No drawings needed
- Assessment from photos
- Serving all of Indonesia
01 / THE CHALLENGE
Is “replacing the part”
really the best you can do?
The cost of a worn part is not just the part itself. Stopping, removing, remaking and reinstalling — the whole burden deserves a second look.
-
01
Replacement cycles are too short
Chutes, pipes and liners wear fast, and frequent replacement has become routine.
-
02
You need lower maintenance cost
Not only material — also downtime, labour hours for replacement and spare-part inventory.
-
03
Off-the-shelf parts don't fit
Heat, impact, sticky powder, complex geometry — every machine runs under different conditions.
THE ANSWER IS NOT ALWAYS ANOTHER REPLACEMENT. Before replacing, re-engineer the surface that wears.
02 / THE TECHNOLOGY
Not just hard.
Engineered for your conditions.

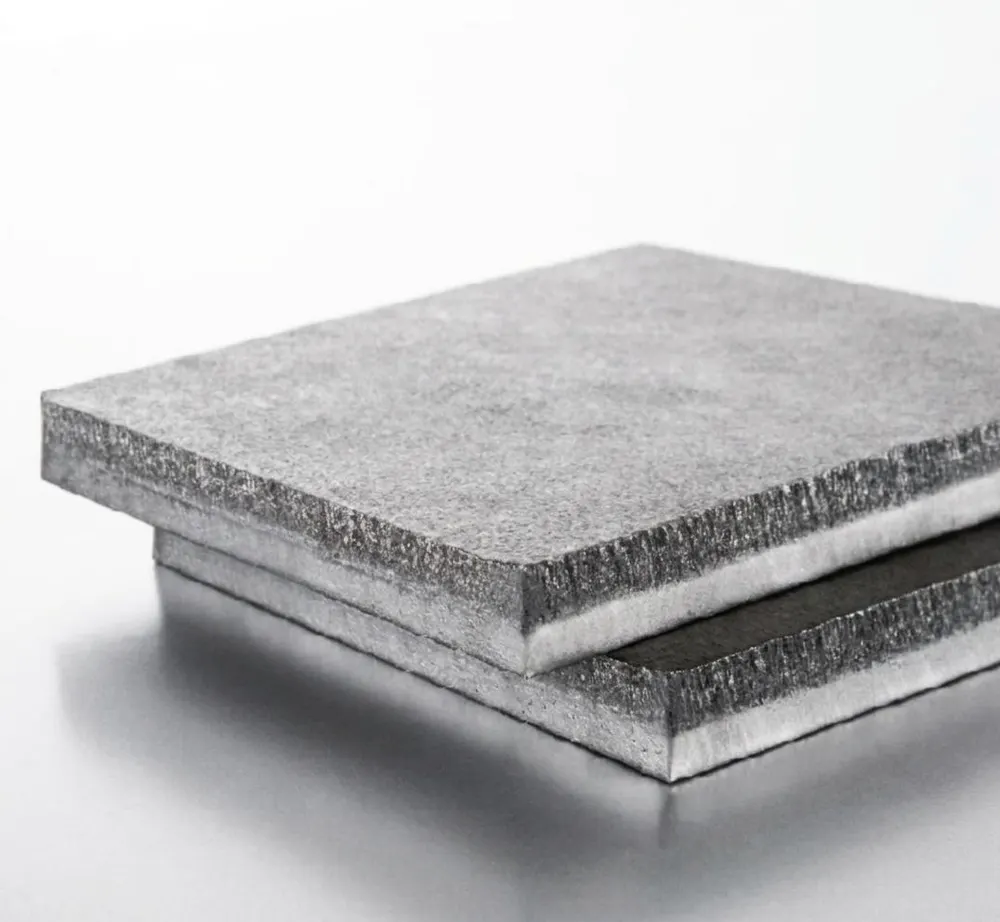

D-Plate is a composite plate: a hardfacing layer rich in complex carbides, fused onto a steel base plate. BCC's proprietary Powder Overlay Process (POP) lets each specification follow your operating conditions.
-
01 / ABRASION
Complex carbides where wear happens.
M₇C₃-type carbides in the hardfacing layer help resist abrasive wear from powder, ore and bulk material.
-
02 / ENGINEERING
Recipe from real operating conditions.
We review abrasion, impact, temperature, corrosion and adhesion, then match alloy, base plate and overlay thickness. Hundreds of hardfacing recipes are available.
-
03 / FABRICATION
Not just a plate — ready to become a part.
It can be cut, rolled, bent, welded and bolted into liners, chutes and complex-geometry parts.
03 / PROVEN IN TESTS
Choose by test data,
not by impression.
ASTM G65 Procedure A results from NARIME (Vietnam National Research Institute of Mechanical Engineering), as stated in the manufacturer's documents. Use them to compare materials, separately from field-life prediction.
Abrasion mass loss (g)
Reference values converted from volume loss to mass. T4063: 4.58 mm³ ≈ 0.036 g; T6566: 5.48 mm³ ≈ 0.043 g. Smaller means less wear under this test condition.
0.036 g
Converted mass loss (T4063)
- Test institute
- NARIME
- Test date
- 2024-09-05
- Load
- 130 N
- Revolutions
- 6,000
- Sand flow
- 239 g/min
3–5×
Longer component lifespan
-
Direct TCO reduction
Fewer replacements mean lower labour cost and less spend on replacement material.
-
Mitigate downtime risk
A predictable wear rate turns unplanned outages into scheduled, budgeted maintenance.
Test values depend on test condition, density and grade, and do not guarantee field-life extension. The 3–5× figure is a typical range reported by the distributor, not a warranty.
Want to compare with the plate you use today?
Discuss test conditions & specs↗04 / SOLUTIONS
Choose by your field problem:
three approaches.
-
01 — STANDARDWear-resistant plate

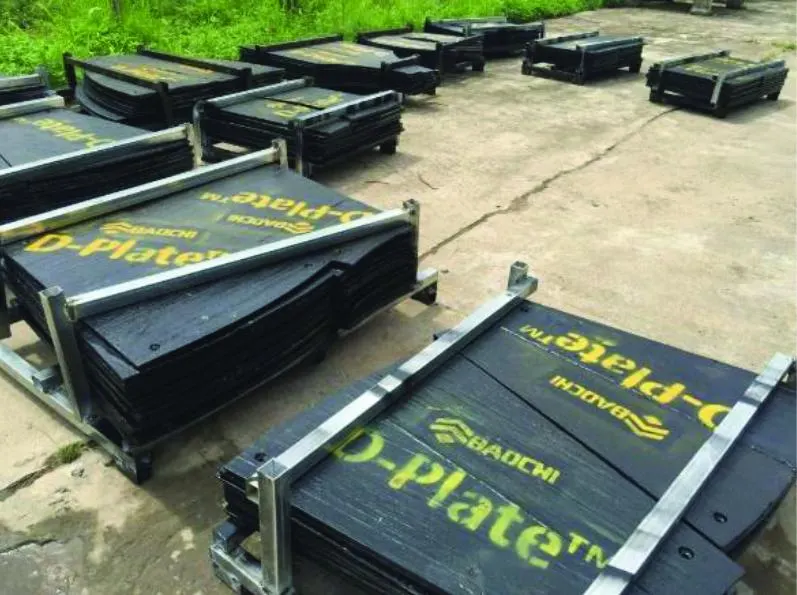

D-Plate 100
Standard hardfacing overlay sheets, ready to be cut, shaped and welded directly into chutes, liners and other wear parts.
Applications: Guide vane, shell liner, roller cover, armor ring, outlet duct, fan blade, nozzle ring, feeding chute, receiving hopper, screen plate.
Discuss this specification ↗ -
02 — ANTI-ADHESION
Wear resistance × anti-adhesion
D-Plate S (Smooth Type)
Smooth, low-friction overlay surface. It resists wear while reducing material build-up and clogging, for smoother material flow.
Applications: Truck loader lining & hoppers, chutes & silos, earth-moving equipment.
Discuss application conditions ↗ -
03 — FABRICATIONFabricated components

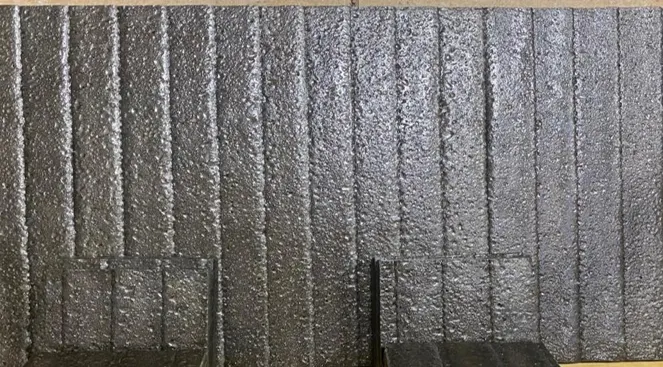

D-Parts
Finished parts built to your drawings: bent pipes, elbows, hoppers, chutes and complex liners — ready to install with application-specific geometry.
Applications: Sintering ore chute, pulverized coal pipe, coke chute & cyclone liner, dust pipe & mixer liner.
Discuss a similar part ↗
Line-up, grades and fabrication feasibility depend on operating conditions and individual specifications.
05 / WHERE IT WORKS
For the harshest wear environments
in heavy industry.
| Industry | Point solution |
|---|---|
| Steel & mining | Ore chute & hopper abrasion |
| Thermal power | Pulverized coal line wear |
| Biomass power | Corrosion & high-temperature wear |
| Cement & bulk | Mixer & cyclone degradation |
| Chemical, oil & gas | Erosion, cavitation & corrosion |
06 / BUILT FOR THE FIELD
From plate
to the shape you actually use.
Five fabrication methods to match shape, thickness and installation method to your site conditions.

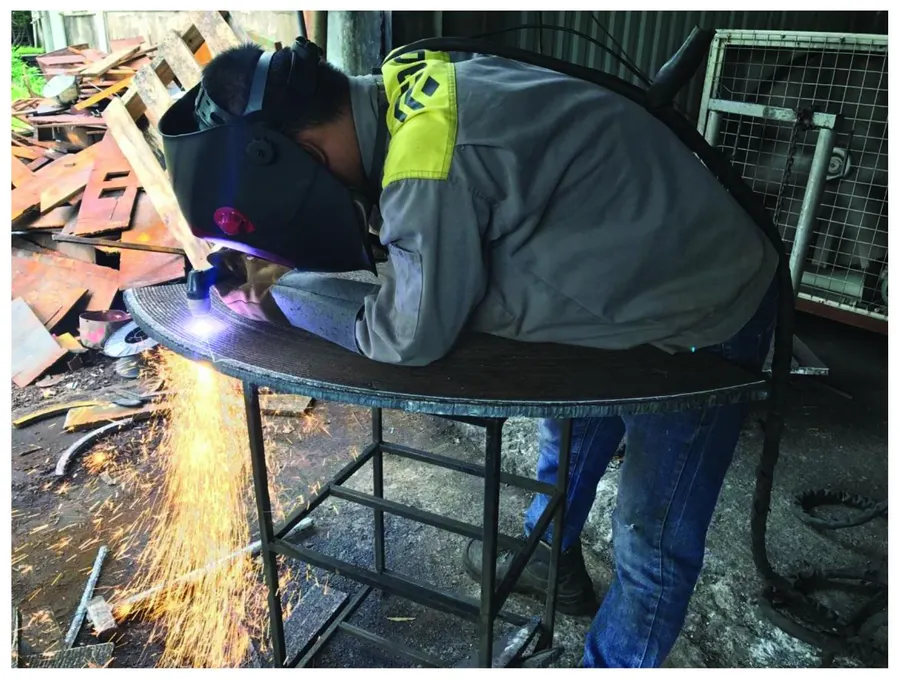

WELDING

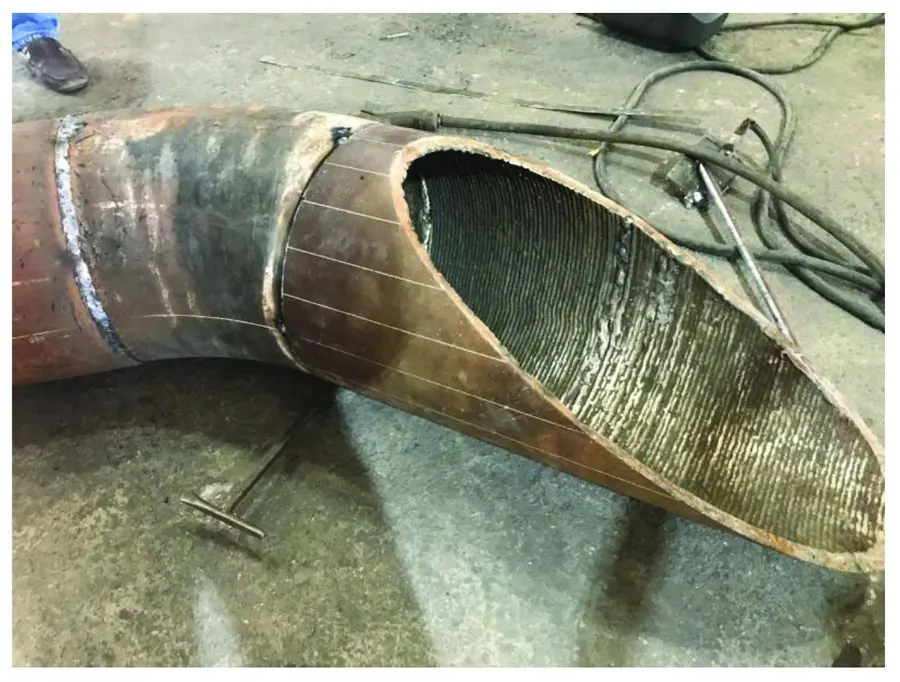

CUTTING

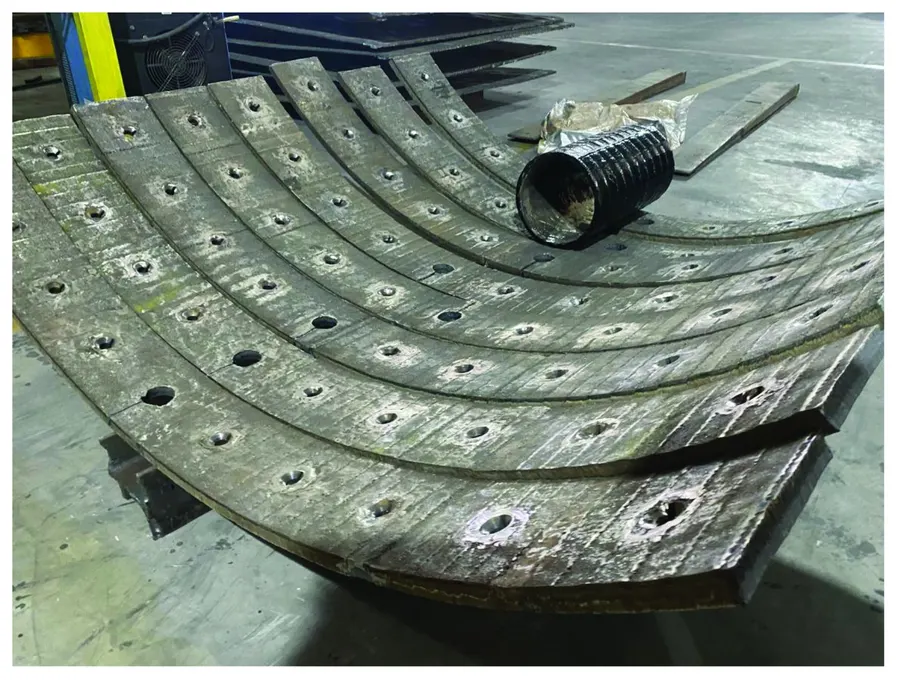

ROLLING

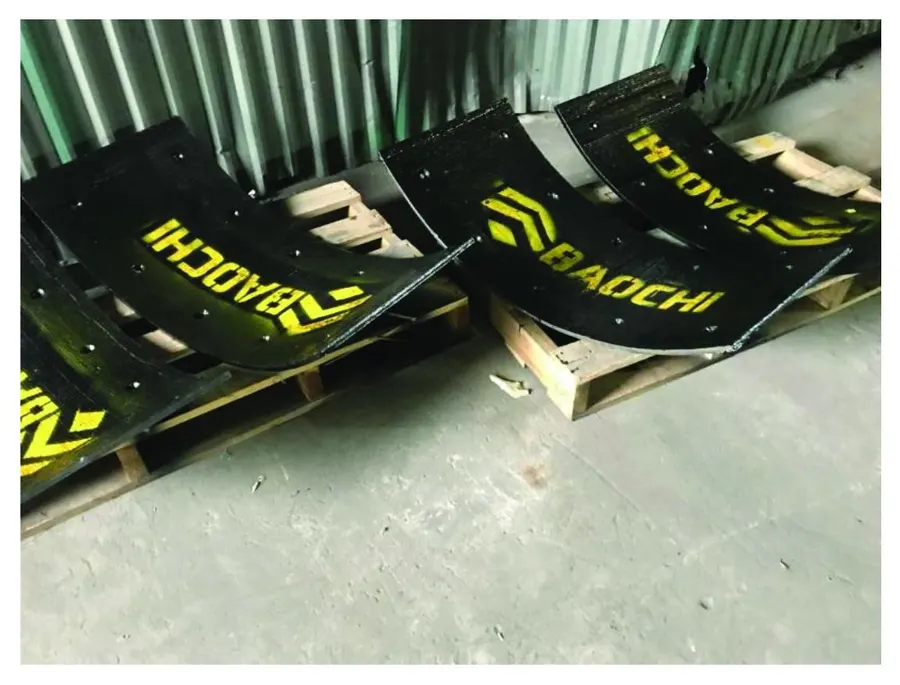

BENDING

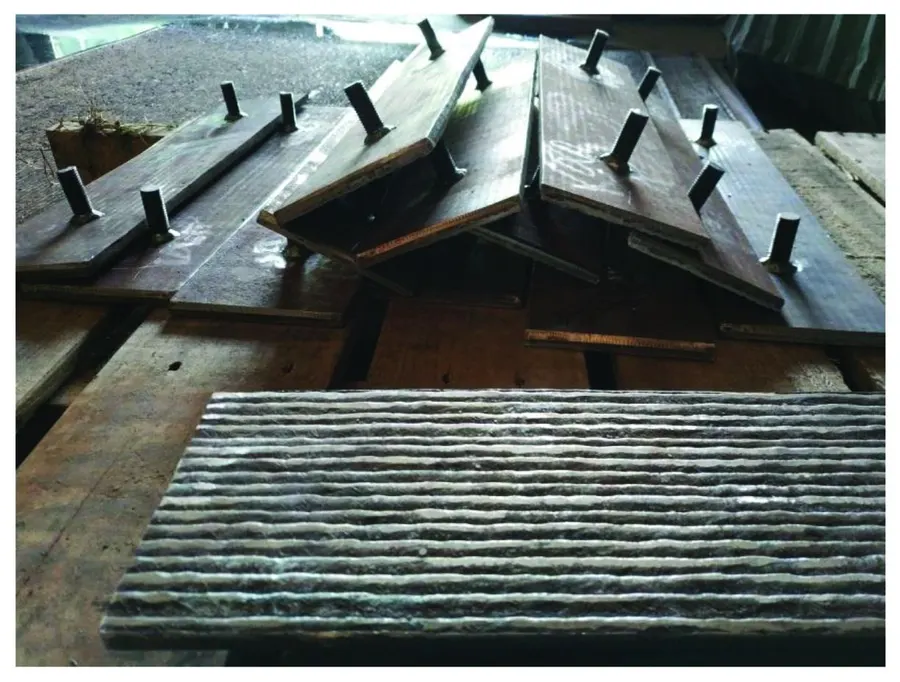

BOLTING
- Hundreds of specialized hardfacing recipes
- Custom bending, stud welding & lining
- Precision fabrication for complex chute geometry
- Plug-and-play parts, ready for installation during maintenance
Have a similar part?
Send photos for a consultation↗07 / FROM PROBLEM TO SPECIFICATION
We don't just sell.
We work out the spec with you.
As BCC's exclusive distributor in Indonesia, Platindo works directly with the manufacturer, starting from the real problem on your plant floor.
- 01
Share the wear condition
Photos, dimensions, wear location, replacement cycle — whatever you know.
- 02
Clarify conditions
Conveyed material, impact, temperature, adhesion, current material and maintenance issues.
- 03
Define spec & fabrication
Grade, thickness build-up, shape, fabrication method, quantity and price.
- 04
Trial & evaluation
If needed, small-lot trials or on-site evaluation, followed by aftercare.
- Low-cost, fast refurbishmentCheaper and faster than producing new parts.
- Initial response without drawingsWe can scope a solution before formal drawings exist.
- Wear assessment from photosEstimate wear and propose a first solution from photos alone.
- Usage guidance & aftercareClear usage guidelines and post-installation support.
08 / PARTNERSHIP
Manufacturing know-how,
connected to Indonesian plants.
D-Plate is manufactured by Bao Chi Company Limited (BCC), a Vietnam-headquartered manufacturer of wear-resistant overlay welding solutions.
PT Platindo Omega Perkasa holds BCC's exclusive distribution rights in Indonesia. With an agile fabless engineering model and a wide network of domestic and international manufacturing partners, Platindo supports you from specification to aftercare.
- Abrasion
- Impact
- Erosion
- Cavitation
- Corrosion
- Heat
- Overlay
- FCW / PTA
- MMA
- Powder Electrode
- Wire Plate
- Laser
- Spraying
- Refurbishment
- Repair
- Mining
- Cement
- Steel
- Power
- Oil & Gas
09 / FAQ
Questions before
you get started.
Which wear environments suit D-Plate?
Severe abrasion from ore, coal, clinker, powder and bulk material — for example chutes, hoppers, pulverized coal pipes, cyclone and mixer liners. Where impact, heat or adhesion is involved, we adjust grade and construction.
How is D-Plate different from ordinary wear-resistant steel?
D-Plate carries a complex-carbide overlay on a steel base plate. The hard layer resists abrasion while the base plate keeps strength and makes fabrication and installation easier.
Can I consult without drawings?
Yes. Send photos of the worn part with approximate dimensions and replacement cycle. We will estimate the wear condition and propose an initial solution.
How do I request a custom product quotation?
Fill in the form on this page or email our sales team directly. Please include detailed specifications for accurate pricing.
What is the typical lead time?
It depends on product type and order size. Standard products typically ship within 2–4 weeks; custom fabrication may take 6–12 weeks. Contact us for a specific timeline.
Do you provide installation services?
We do not install directly, but we can recommend trusted partners and provide guidance and support during installation.
Can you supply internationally?
Yes. Contact our sales team to discuss shipping options, costs and required documentation.
10 / LET'S TALK
Tell us about your wear problem
as it is.
No drawings needed — a single photo of the part is enough to start. Tell us the current lifespan, replacement frequency or budget, whatever you know.
